Vacuum Pump Filter

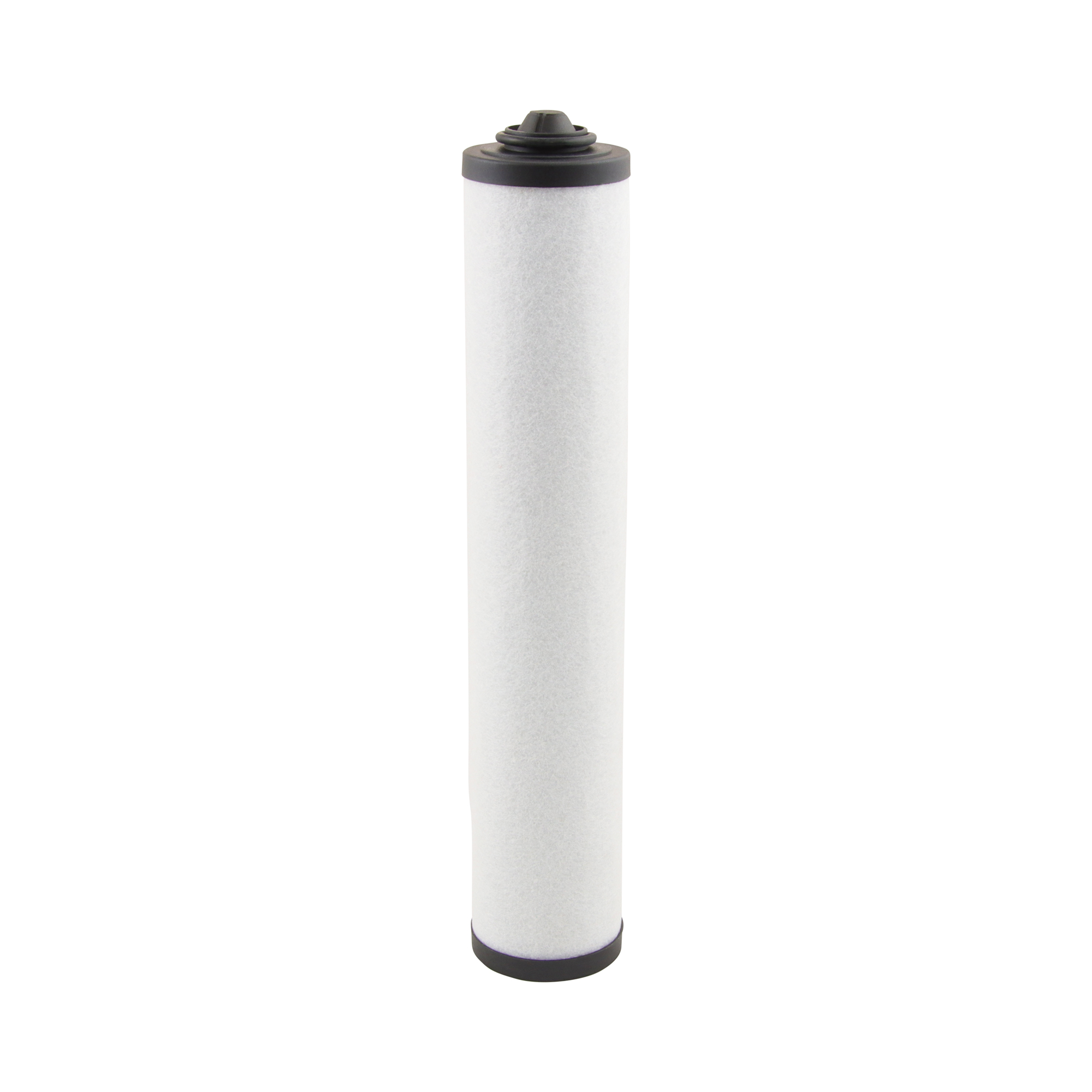

RA 0160D vacuum pump exhaust air filter

Product description: The vacuum pump exhaust filter in the form of a cylinder has a height of 383 mm and an outer diameter of 72 mm for RA0160D vacuum pump
INQUIRY EMAIL

These vacuum pump exhaust filters are ideally suited as cleaning material for dry running vacuum pumps and compressors without oil. With this, the best performance is achieved from the machine. Air filters can be universal, so the parts fit in different pumps and are suitable for different brands. Article number 0532140159 is suitable for vacuum pumps from Busch. This is an original manufacturer ( original equipment manufacturers).

The operation of the machine is highly dependent on the environment in which it is running. A wet, dirty, very hot or cold environment will affect the life of the filters, which are incorporated in dry running vacuum pumps.

Maintenance is simple and can be carried out by yourself. Apart from regular checks and the timely replacement of vanes and filters, no additional maintenance is required. The rotary vane compressors generate an oil-free overpressure of 1 bar(g).

Operation Dry-running Rotary Vane Vacuum Pump:

The Dry-running Rotary Vane Vacuum Pump consists of a cylindrical pump housing assembled with an electric motor.
Inside the pump housing is an eccentrically positioned rotor with vacuum vanes.
When the rotor rotates in the pump housing, the vacuum vanes move toward the pump housing wall (center of flying force), creating chambers in the 360-degree circle.
Air is drawn in, compressed and pushed out again.
