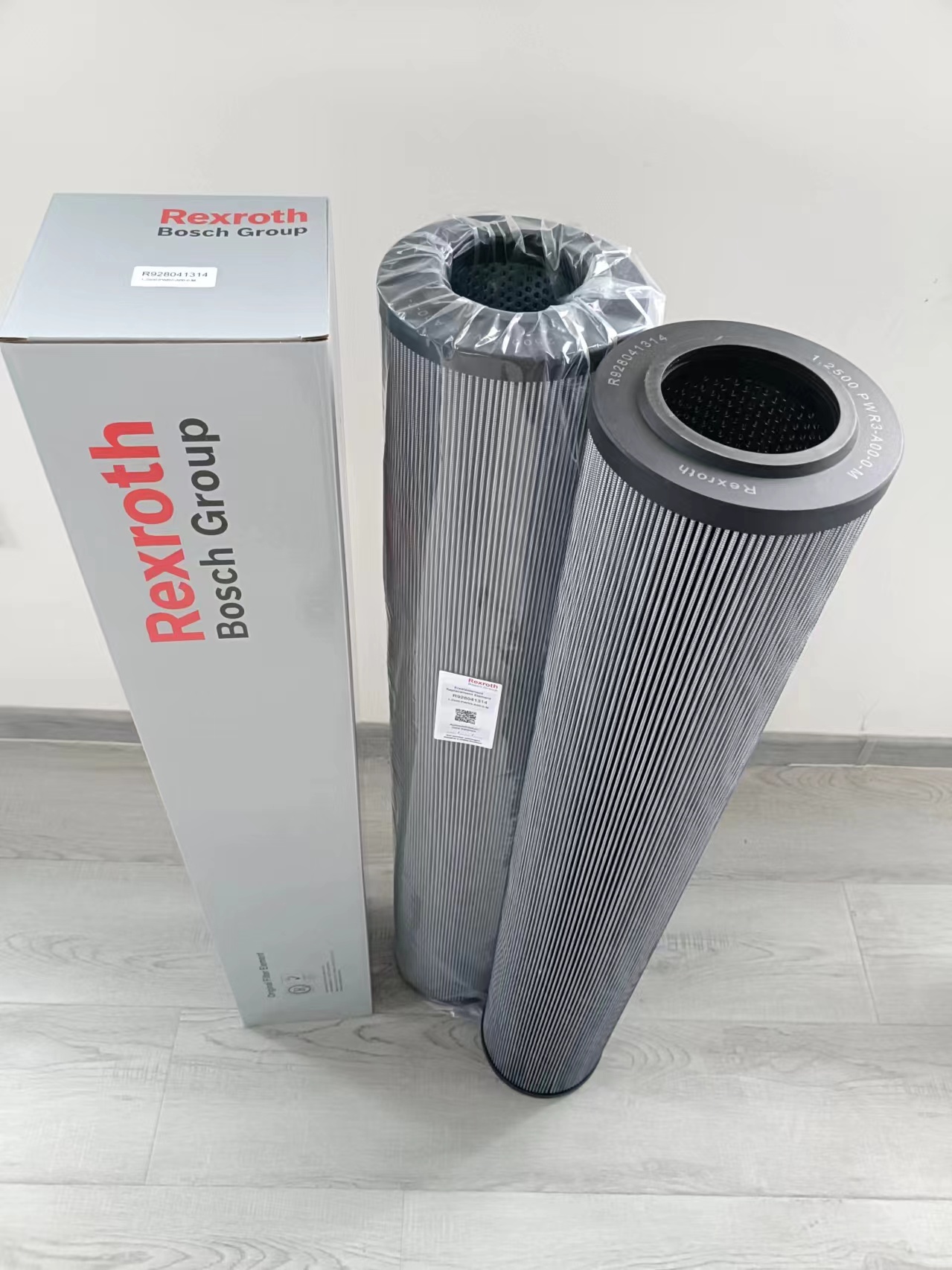

Replacement filter elements for Rexroth 1.2500 PWR3-A00-0-M

Replacement filter elements for Rexroth 1.2500 PWR3-A00-0-M(R928041314)

Features

• Replacement filter elements for Rexroth filters: Filter media for all applications made out of glassfiber-paper, filter-paper, wire mesh, non-wovens, and metal fiber.
• Special highly efficient filter media
• Adsorption of very fine particles across a broad pressure differential range
• High dirt holding capacity thanks to large specific filter area
• Good chemical resistance of the filter elements
• High collapse resistance of the filter elements (e.g. in case of cold start)
• Filter ratings: 3…100 µm
• As standard, each filter is equipped with mechanical-optical maintenance indicator with memory function

Tech Specifications

1.2500 PWR3-A00-0-M(R928041314) Return Filter Element Replacement

Efficiency 1 3µ @ β200
Efficiency 2 5µ @ β1000
Outer Diameter 6.3 in
Inner Diameter 3.56 in
Length 38.98 in
Media Glass Fiber
Flow Direction OUT-IN
Δ Collapse Pressure 435 PSI
Seal Material Nitrile
Temperature Range -20 - +210°F
