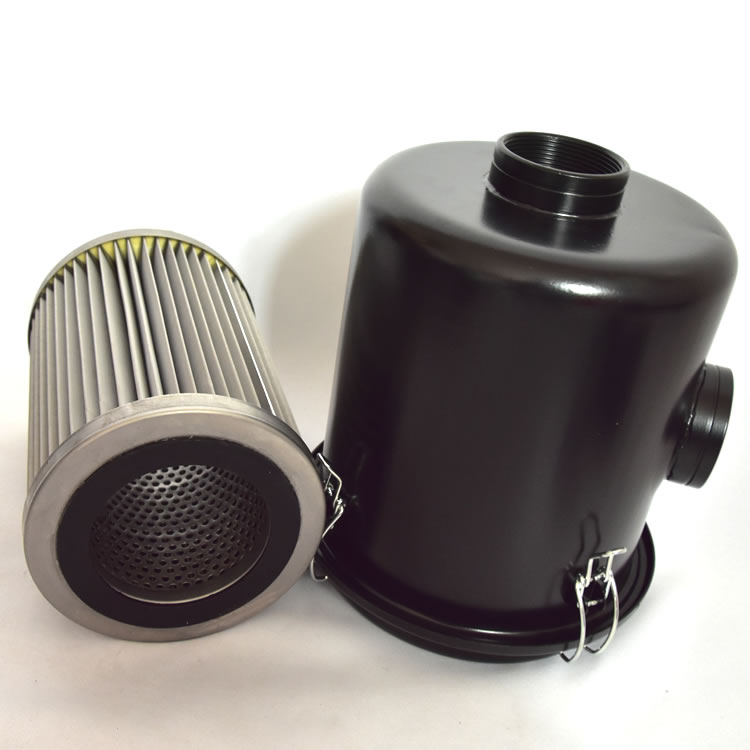

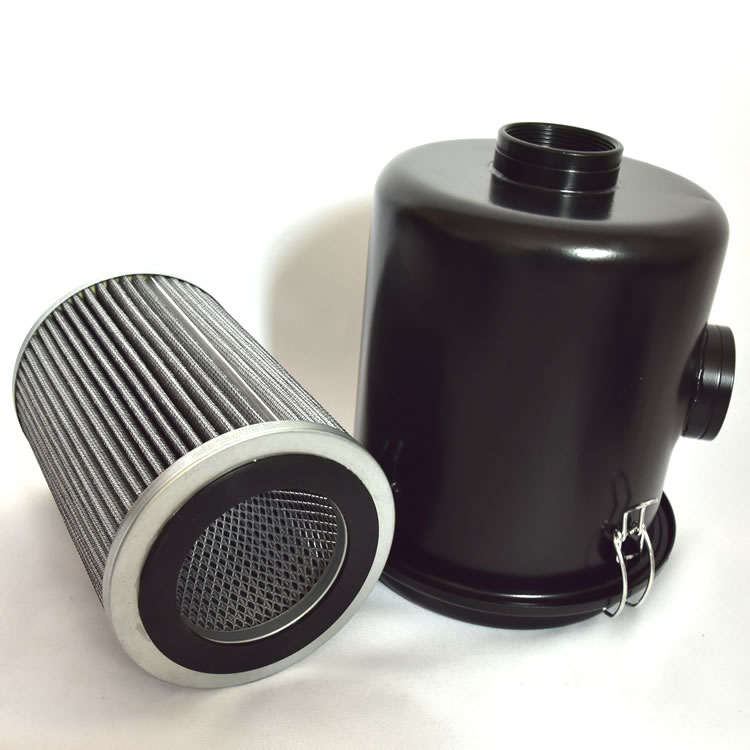

Vacuum Pump Inlet Particulate Filter for  municipal sewage treatment plant

Model Number

F002

F002-1

F004

F003

F003-1

F006

F006-1

F007

F008

Rated flow (m³/h)

32

42

100

120

150

300

360

360

800

*A (inch)

G1/2''

G3/4''

G1 1/4''

G1 1/4''

G1 1/2''

G2''

G2 1/2''

G3'

G4''

*B (inch)

G1/2''

G3/4''

G1 1/4''

G1 1/4''

G1 1/2''

G2''

G2 1/2''

G3''

G4''

C (mm)

φ101

φ101

φ146

φ185

φ185

φ222

φ222

φ222

φ350

D(mm)

90

90

110

170

170

258

258

258

370

E(mm)

53

53

70

115

115

125

125

125

135

F(mm)

70

70

75

130

130

240

240

240

170

Weight(kg)

1

1

1.4

2.3

2.3

6.9

6.9

6.9

15

Remark: size A, B are pipe thread G.
